Specifications

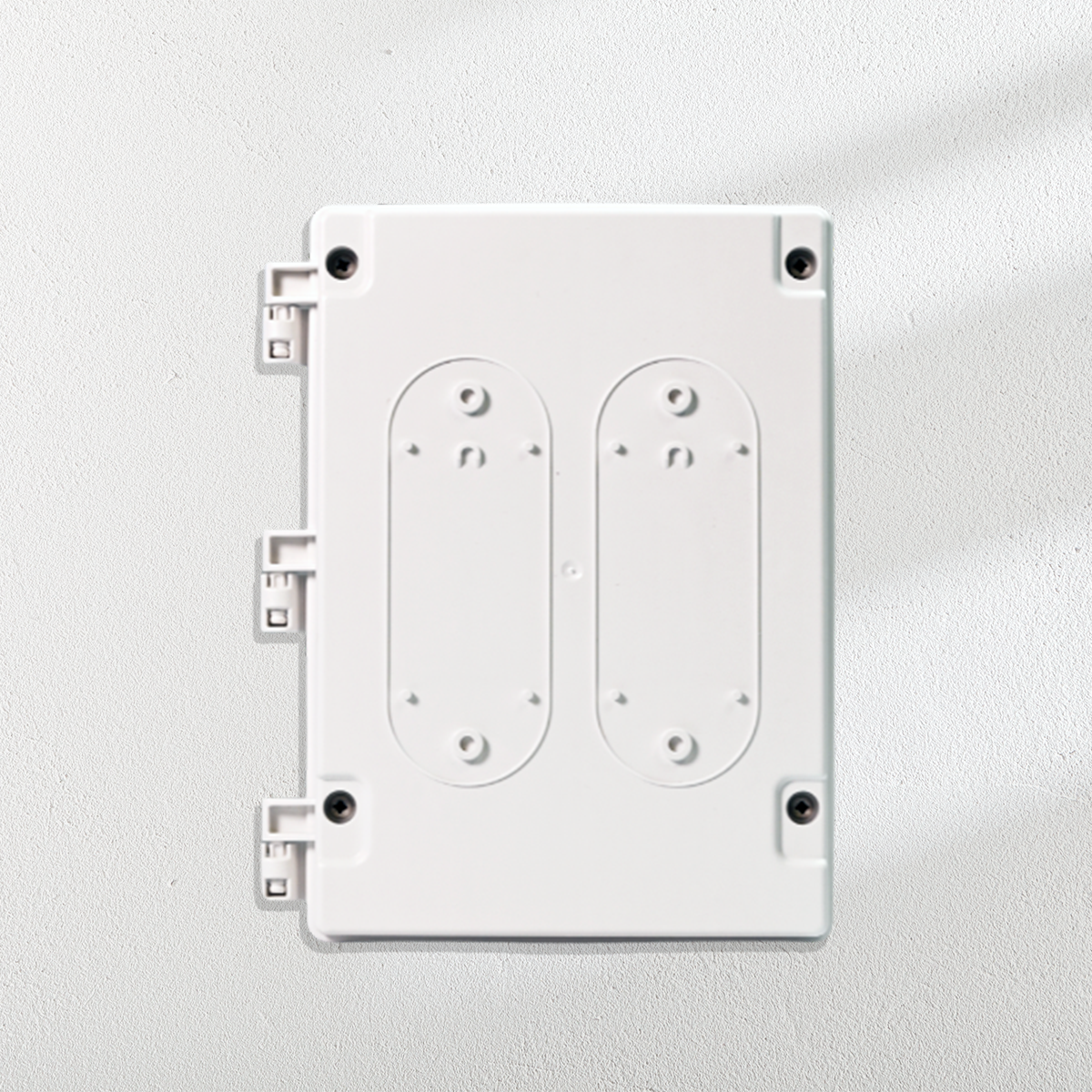

MODEL | Smart-Heat Control On/Off 1 CH |

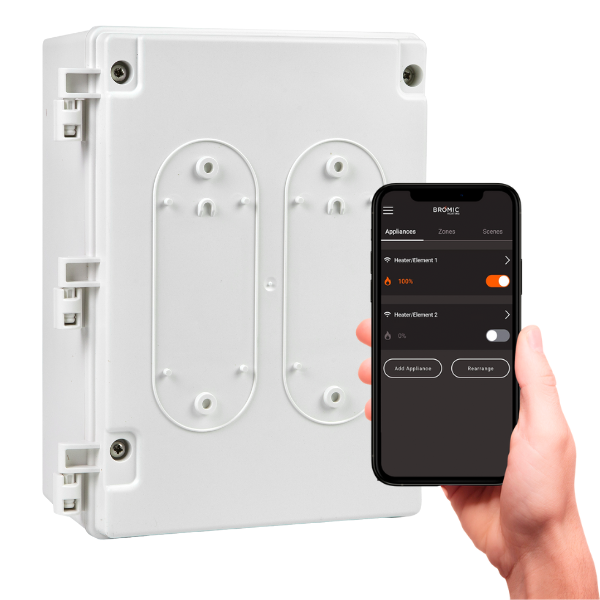

Smart-Heat Control On/Off 2 CH |

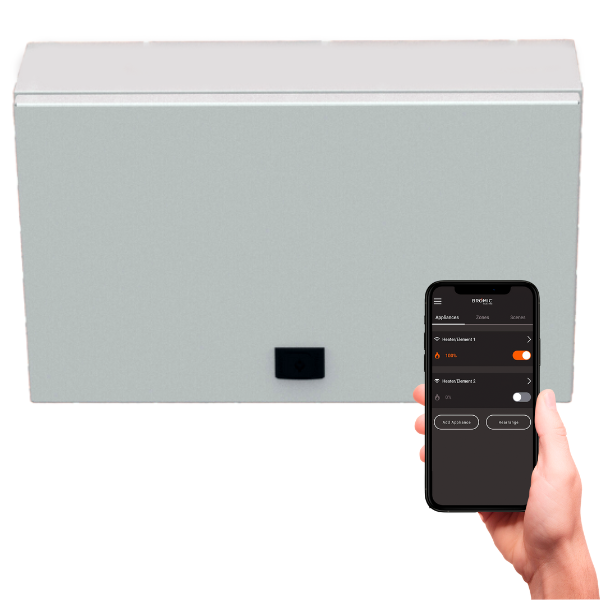

Smart-Heat Control On/Off 5 CH |
PART NUMBER | BH3130051 | BH3130052 | BH3130053 |
NUMBER OF CHANNELS | 1 | 2 | 5 |
VOLTAGE-MAX CAPACITY PER CHANNEL | 100-127V – 1kW 208-277V – 6kW |
100-127V – 1kW 208-277V – 6kW |
3N-220/380V – 6kW 3N-230/400V – 6kW 3N-240/415V – 6kW 3N-277/480V – 6kW 3- 120/208V – 6kW |
OPERATING TEMPERATURE RANGE | -4°F to +86°F | -4°F to +86°F | -4°F to +86°F |
NON-OPERATING TEMPERATURE RANGE | -22°F to +158°F | -22°F to +158°F | -22°F to +158°F |
PROTECTION RATING | IP54 | IP54 | IP54 |
DIMENSIONS | 11.4 x 8.0 x 4.4″ | 11.4 x 8.0 x 4.4″ | 19.7 x 13.4 x 8.0″ |
WEIGHT | 3.1 lbs | 3.6 lbs | 24.3 lbs |
