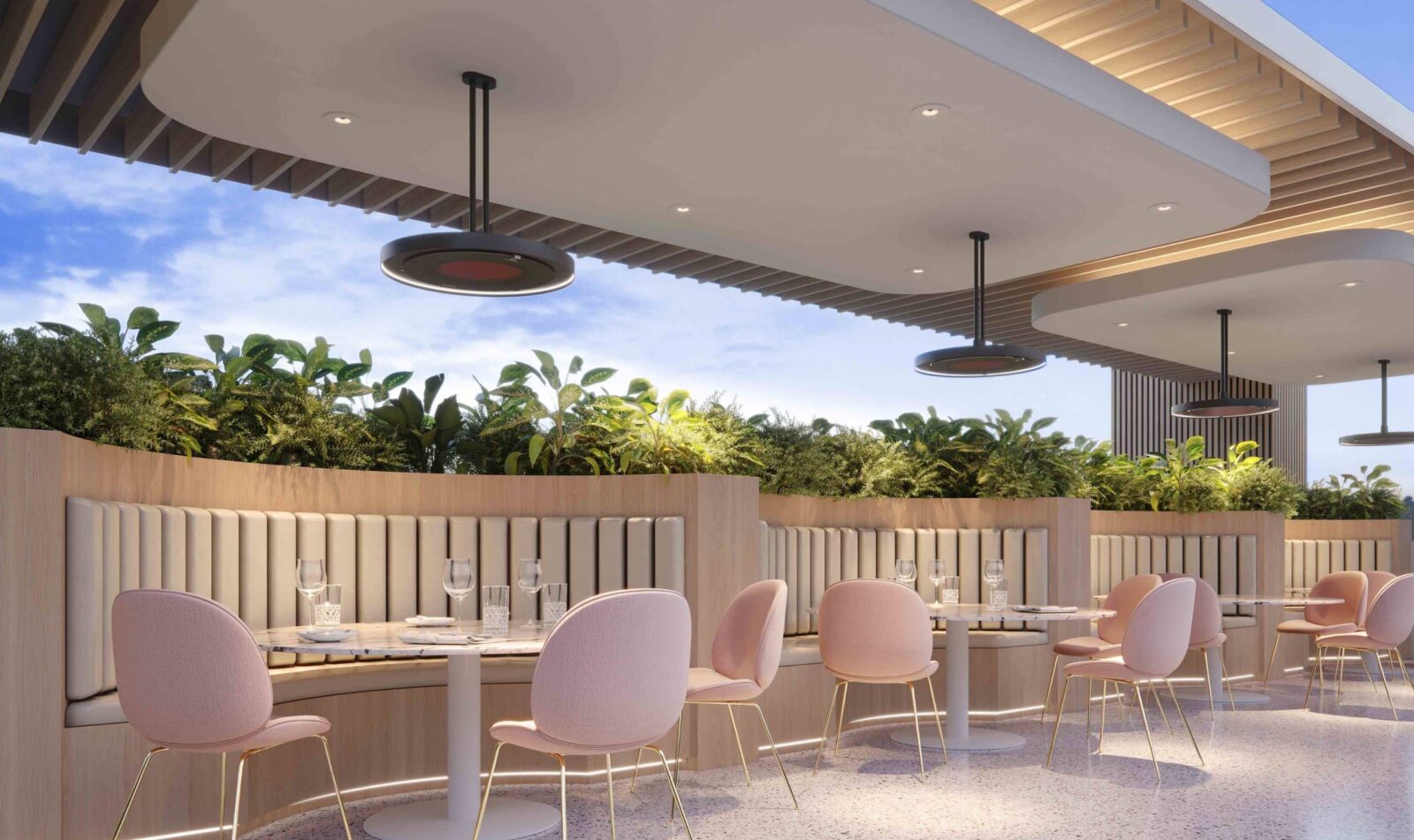

Electric outdoor heaters above tables

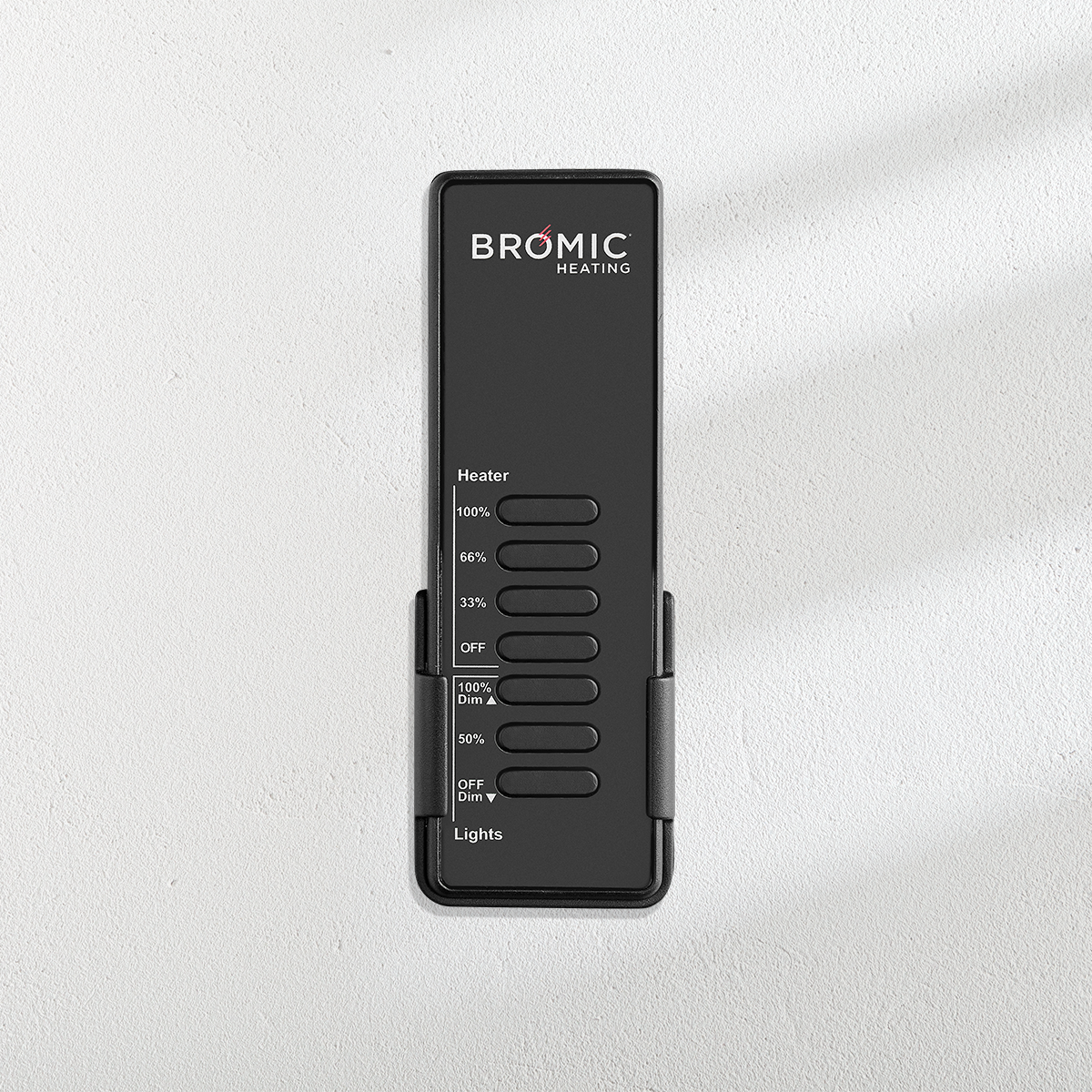

Eclipse Dimmer Controller

The Bromic Heating Wireless Dimmer Controller can quickly dim the lighting and heating output over a percentage gradient to create the perfect ambience – every time. Control your heat output from high to low at 0%, 33%, 66% and 100%. Lights can be dimmed up or down in 1% increments.

Eclipse Dimmer Controller

$691.00

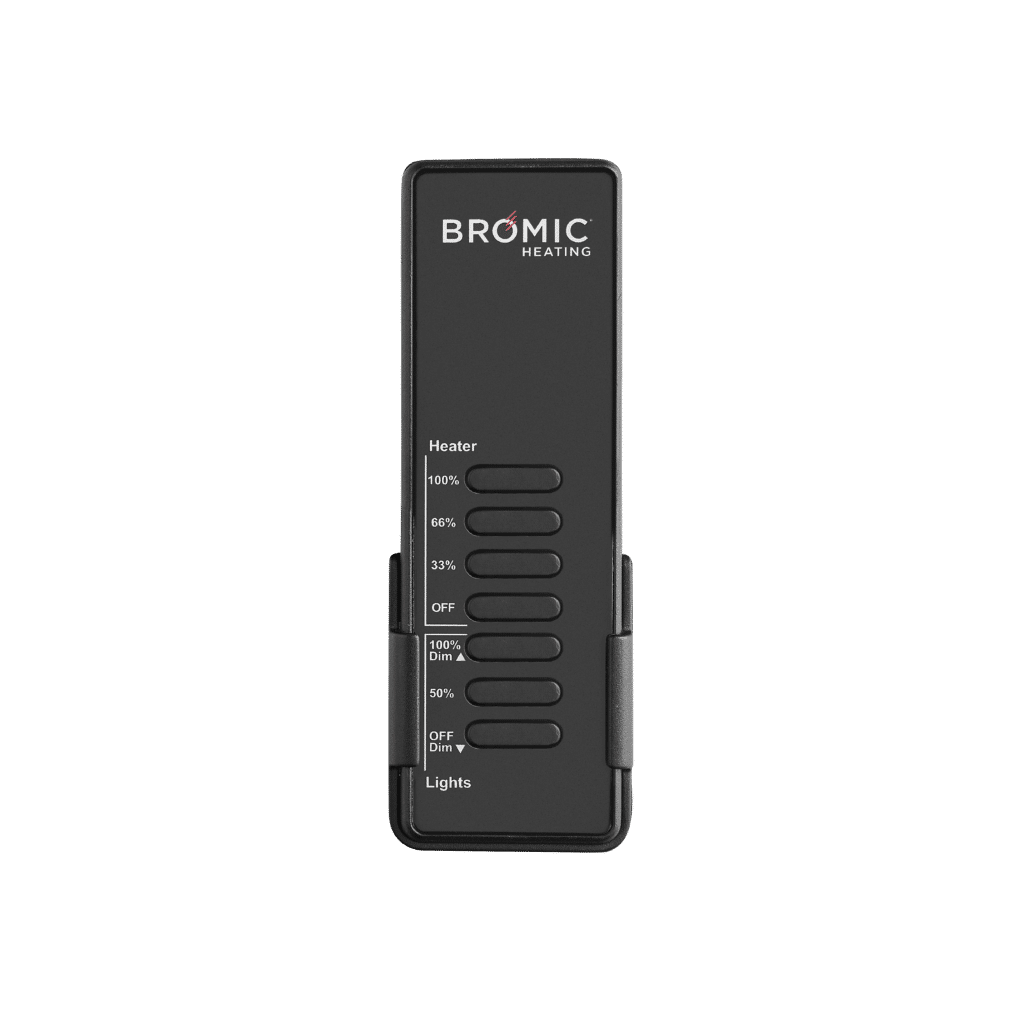

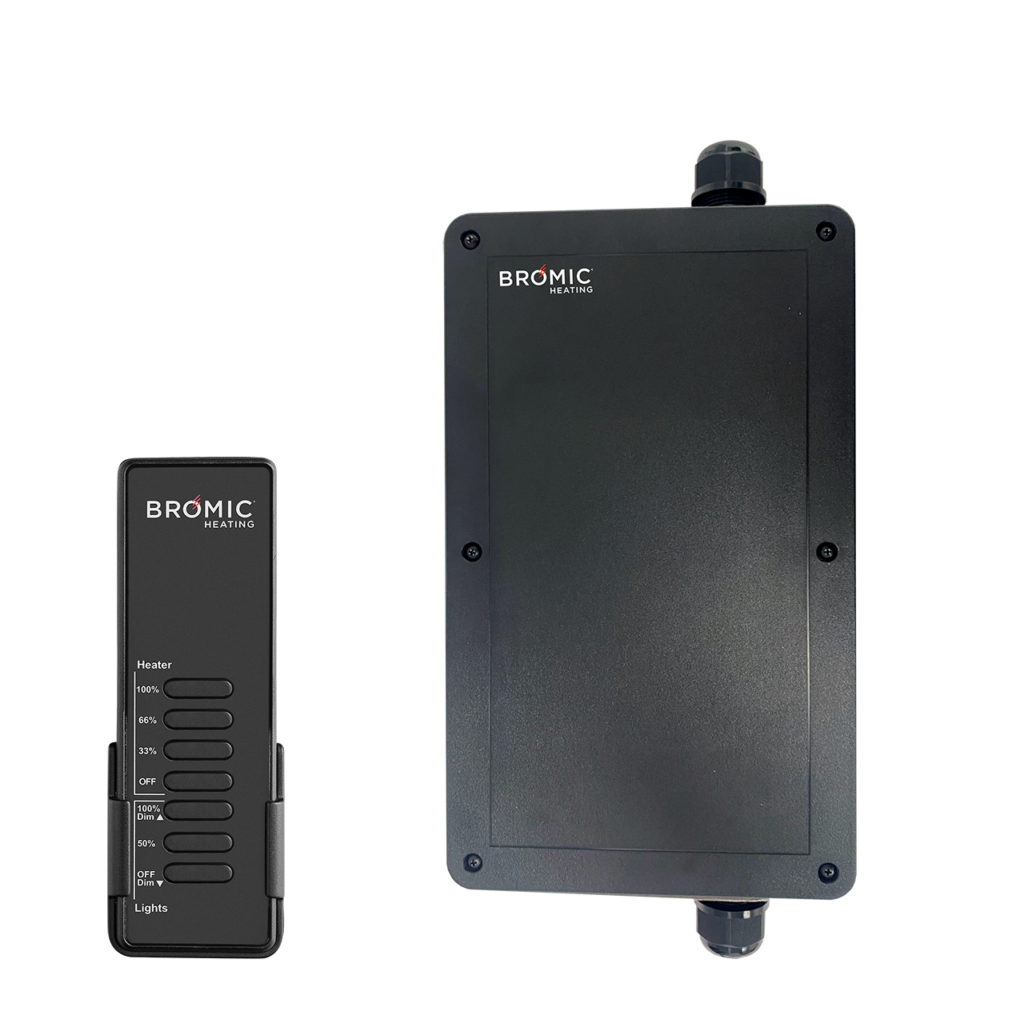

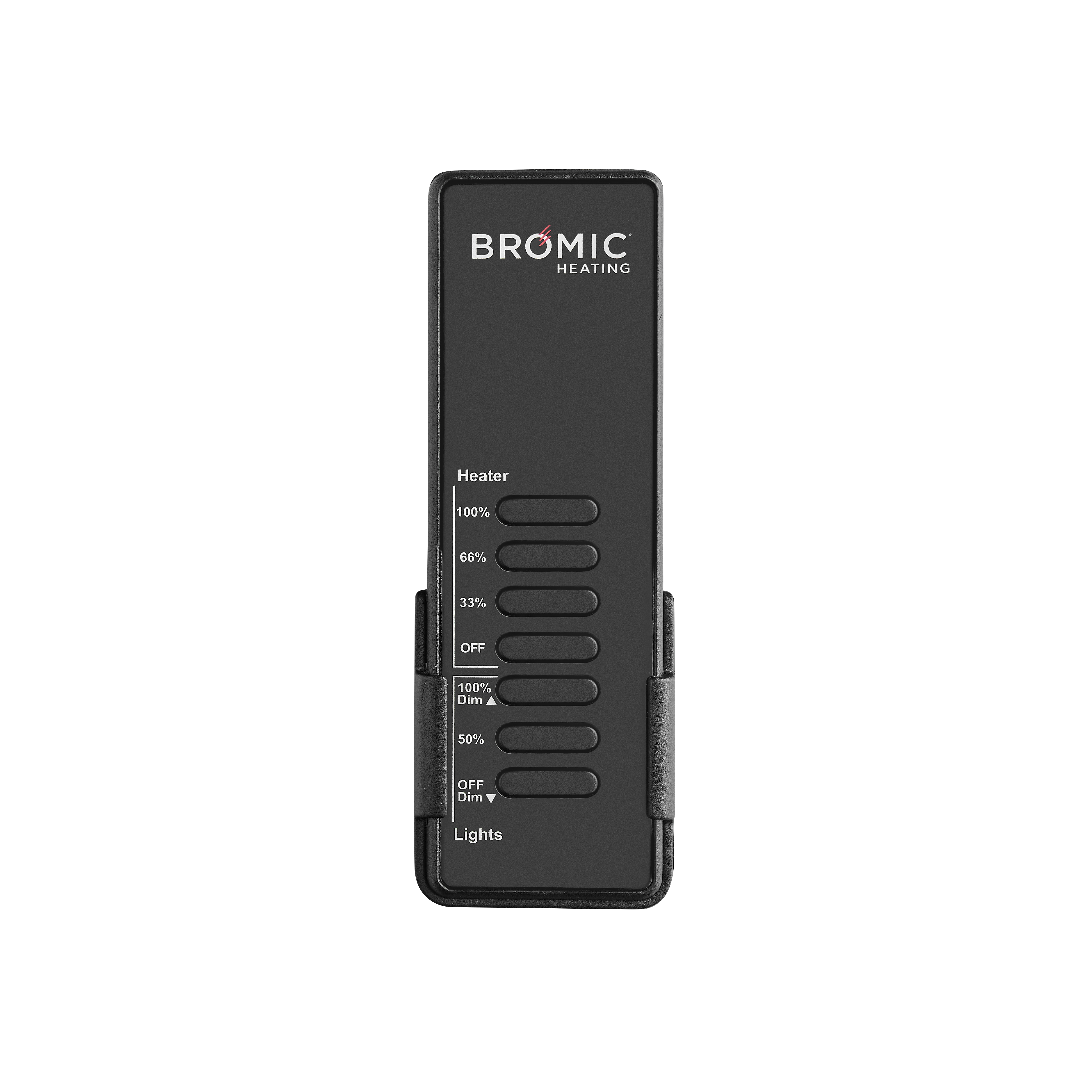

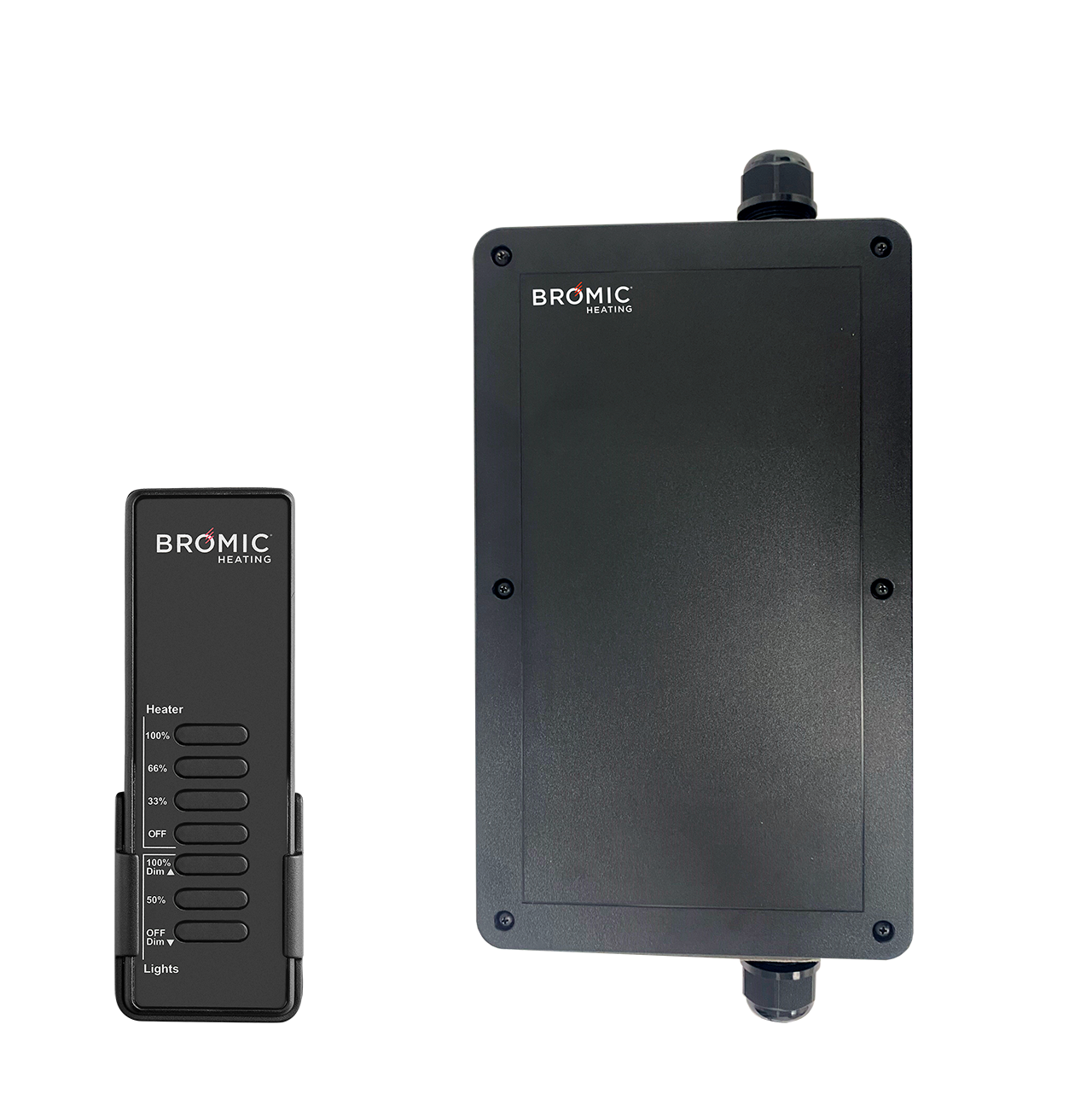

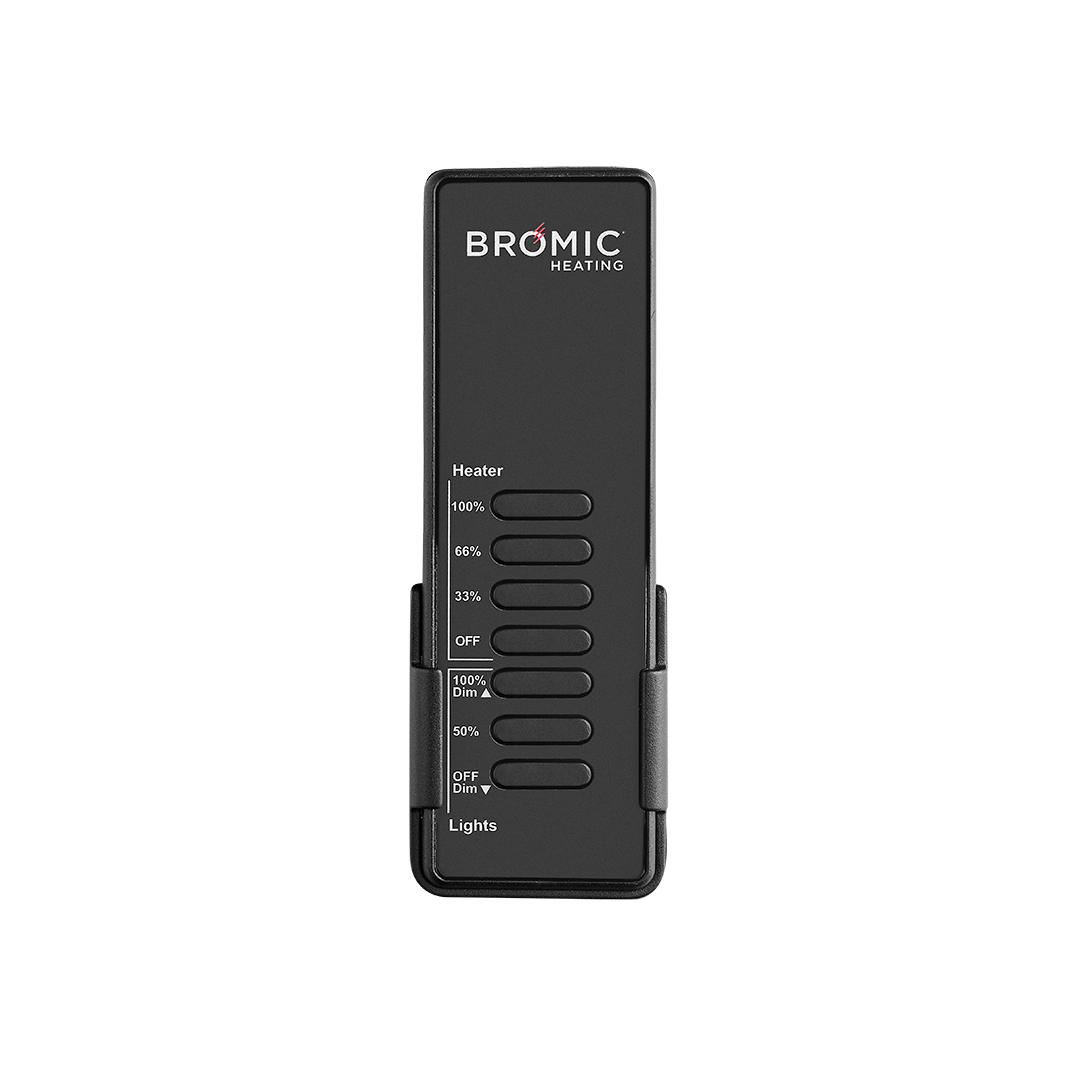

Set up the perfect ambience with the Bromic Eclipse Dimmer Controller and wireless Remote. Suitable for our Eclipse Pendant and Portable series, the Bromic Eclipse Dimmer Controller and Remote can quickly dim the lighting in 1% increments and the heating output (0%, 33%, 66%, 100%) to create the perfect ambience – every time.

SKU: BH3230007 Category:
Talk to Sales

Product Resources

Specifications

Please reference the specification guide below to help you select the correct solution for your needs.

PART NUMBER BH3230007-1
POWER SUPPLY 220/240VAC, 17A min, Single Phase
CHANNEL 1 Element 1 – 66% Heat Setting
CHANNEL 2 Element 2 – 33% Heat Setting
FUSE PROTECTION 20A (FWC high speed)
RECEPTION FREQUENCY 916MHz
OPERATING TEMPERATURE RANGE -4 to 122°F
DIMENSIONS 11.5”x 6.2” x 3.15”
WEIGHT 4lbs
PROTECTION CLASS IP54
