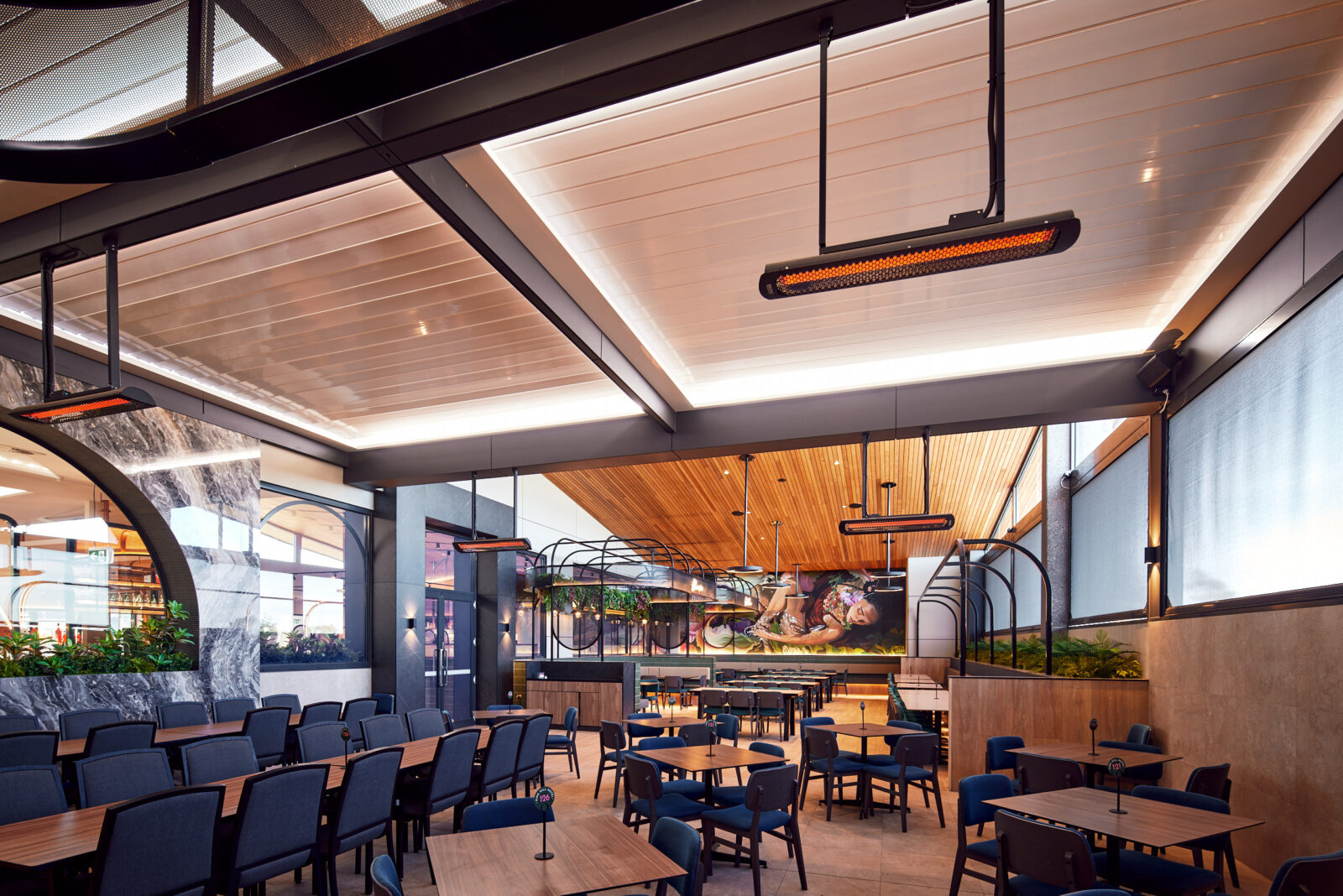

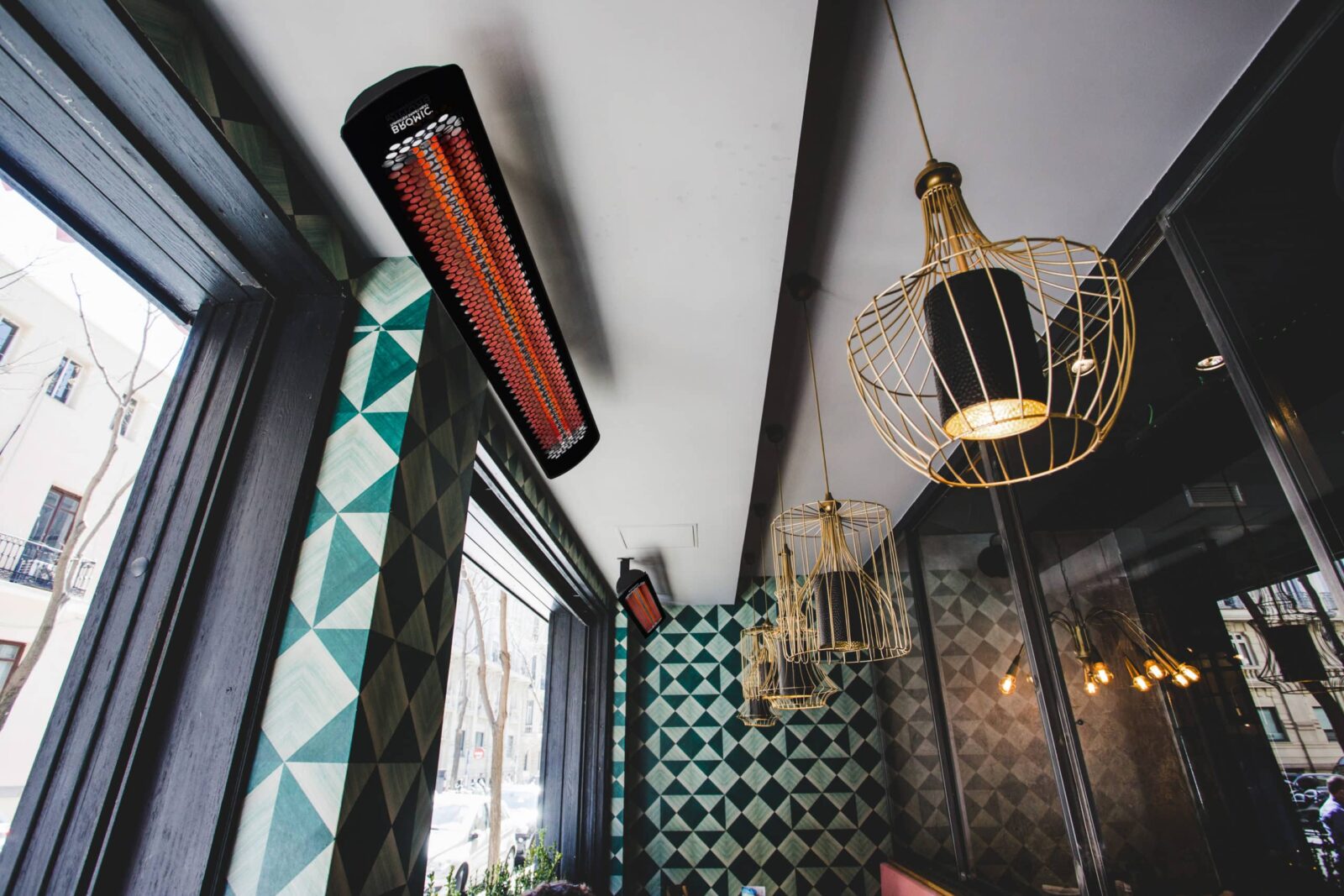

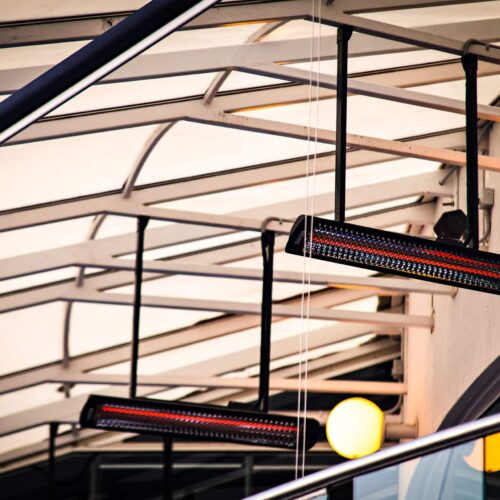

Electric Outdoor Heater Ceiling Mounted in Cafe

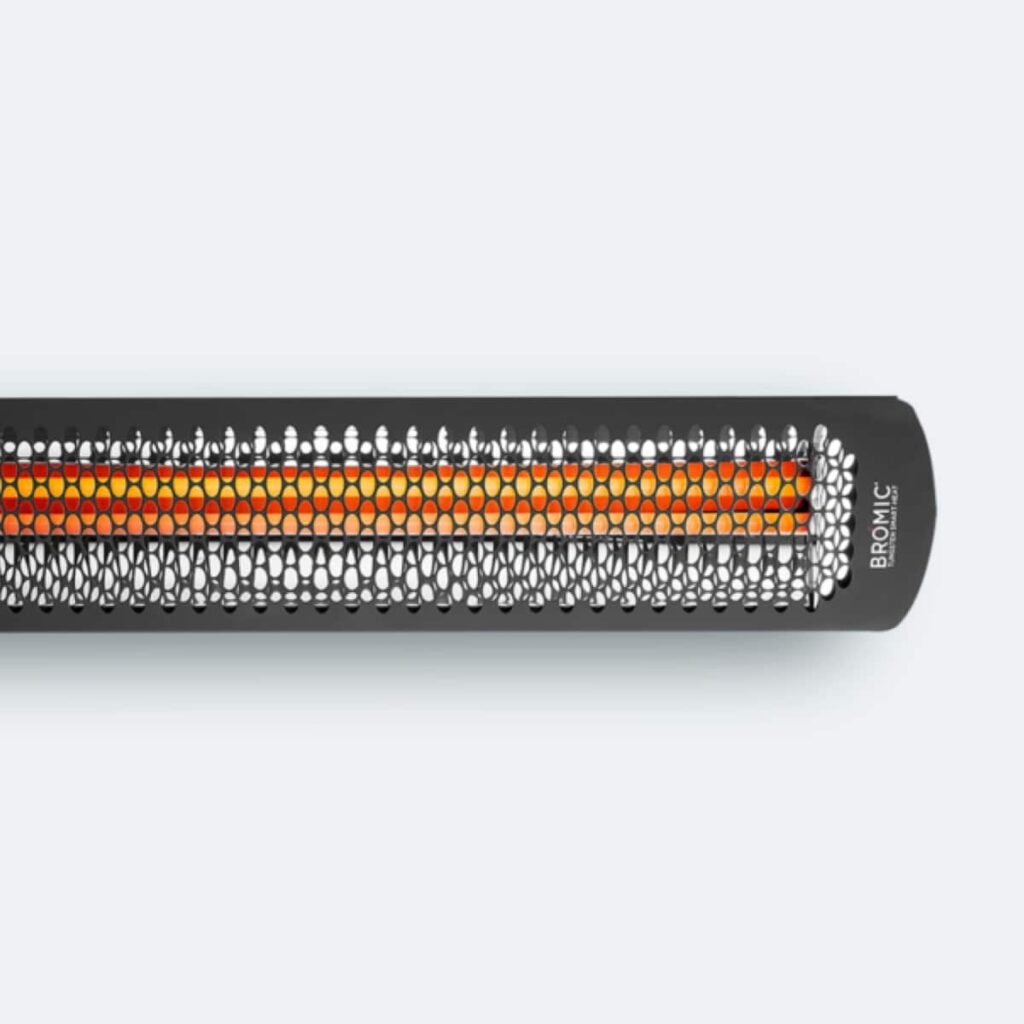

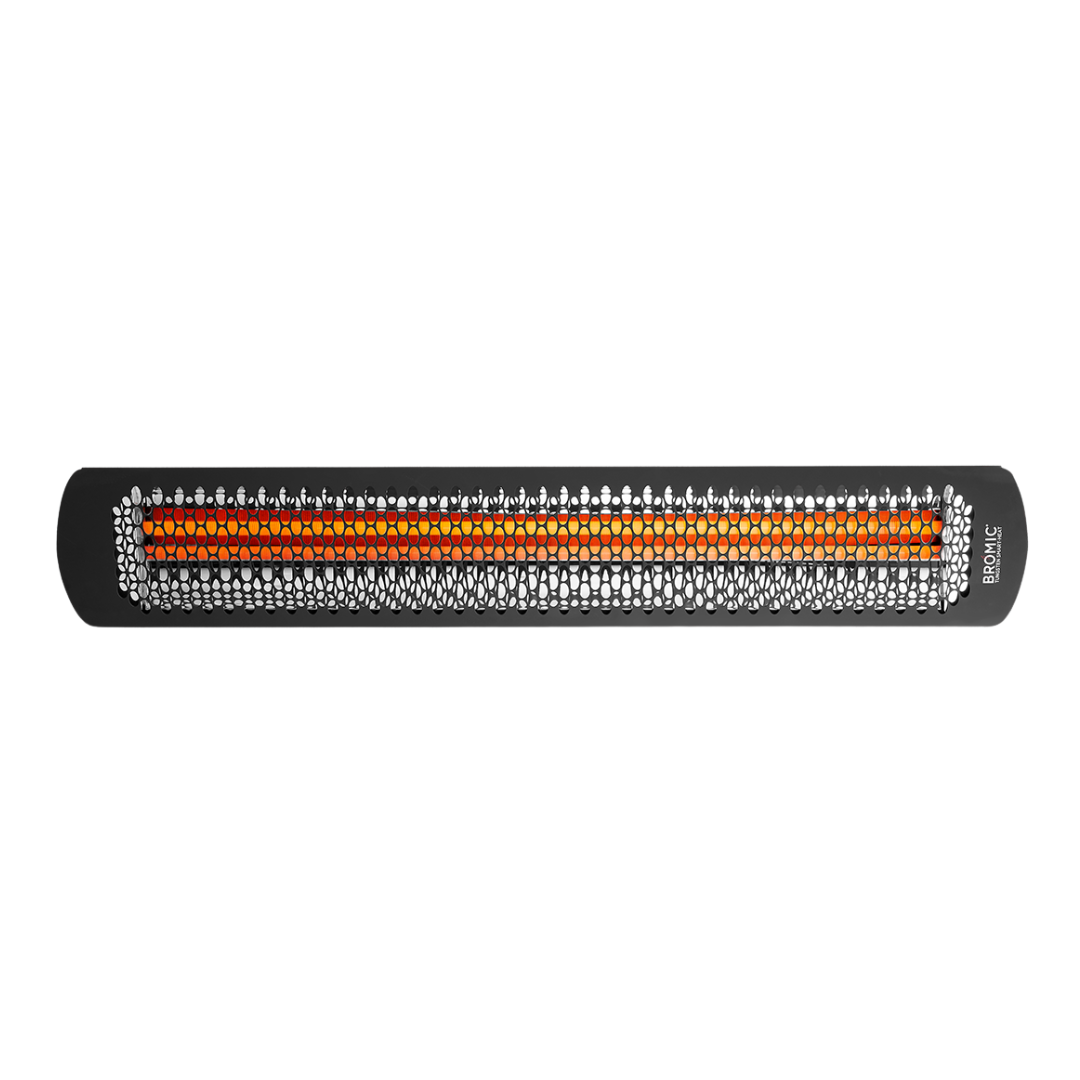

Tungsten Smart-Heat™ Electric

Durability meets power. The Tungsten Smart-Heat™ Electric heater is the ideal solution for larger spaces and colder climates, offering market-leading directional radiant heat, durable stainless-steel construction in an attractive industrial design style, and a variety of mounting options.

Tungsten Smart-Heat™ Electric

$704.00$1,095.00

Expand your living space with the Bromic Tungsten Smart-Heat™ Electric series. Combining stylish, industrial design with market-leading radiant heat technology, each Tungsten Electric heater will provide an even flow of warmth to outdoor spaces of up to 160ft2. The heater’s high-temperature coating and stainless-steel construction make it suitable for all environments.

Tailored outdoor heating has never been easier, with four models ranging from 2000W (2kW) to 6000W (6kW) and the ability to separately control the individual elements of the 4 kW and 6 kW models. Choose from wall mounting, pole mounting or recessed mounting options.



SKU: N/A Category:

Features & Benefits

From its unique honeycomb surface to its powerful and precise radiant heating, the Tungsten Electric heater series is sure to keep you warm year-round.

Electric Outdoor Heater
  • More
    Close
    Durable Design

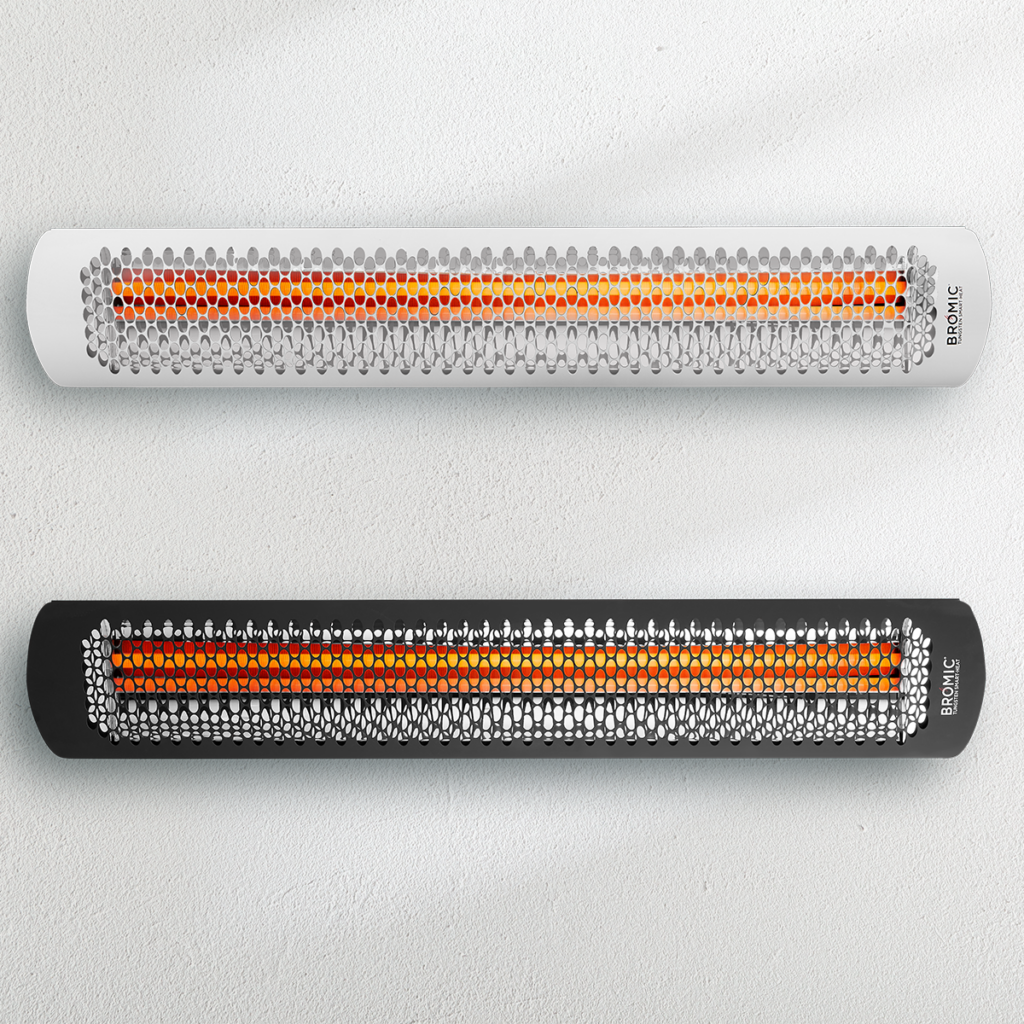

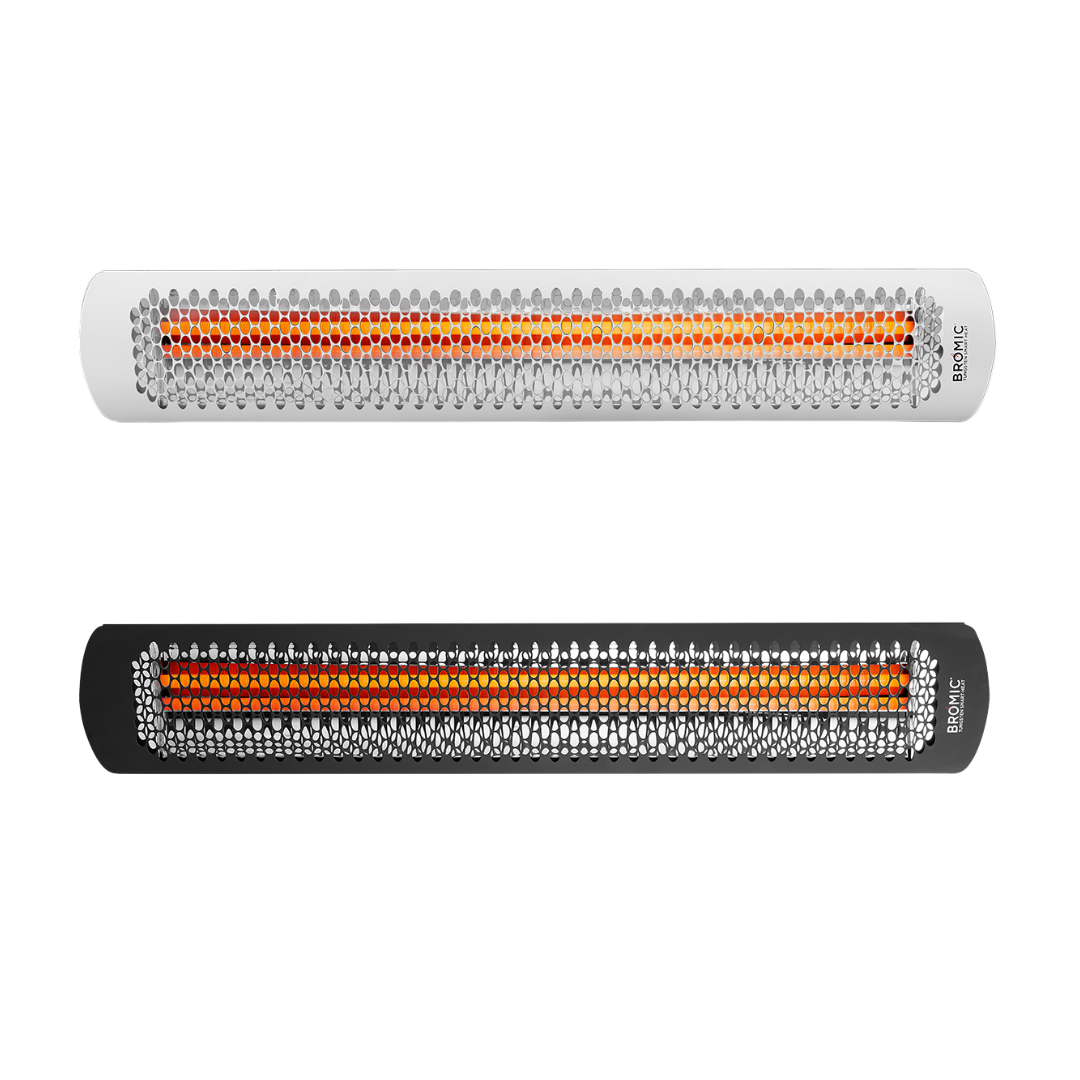

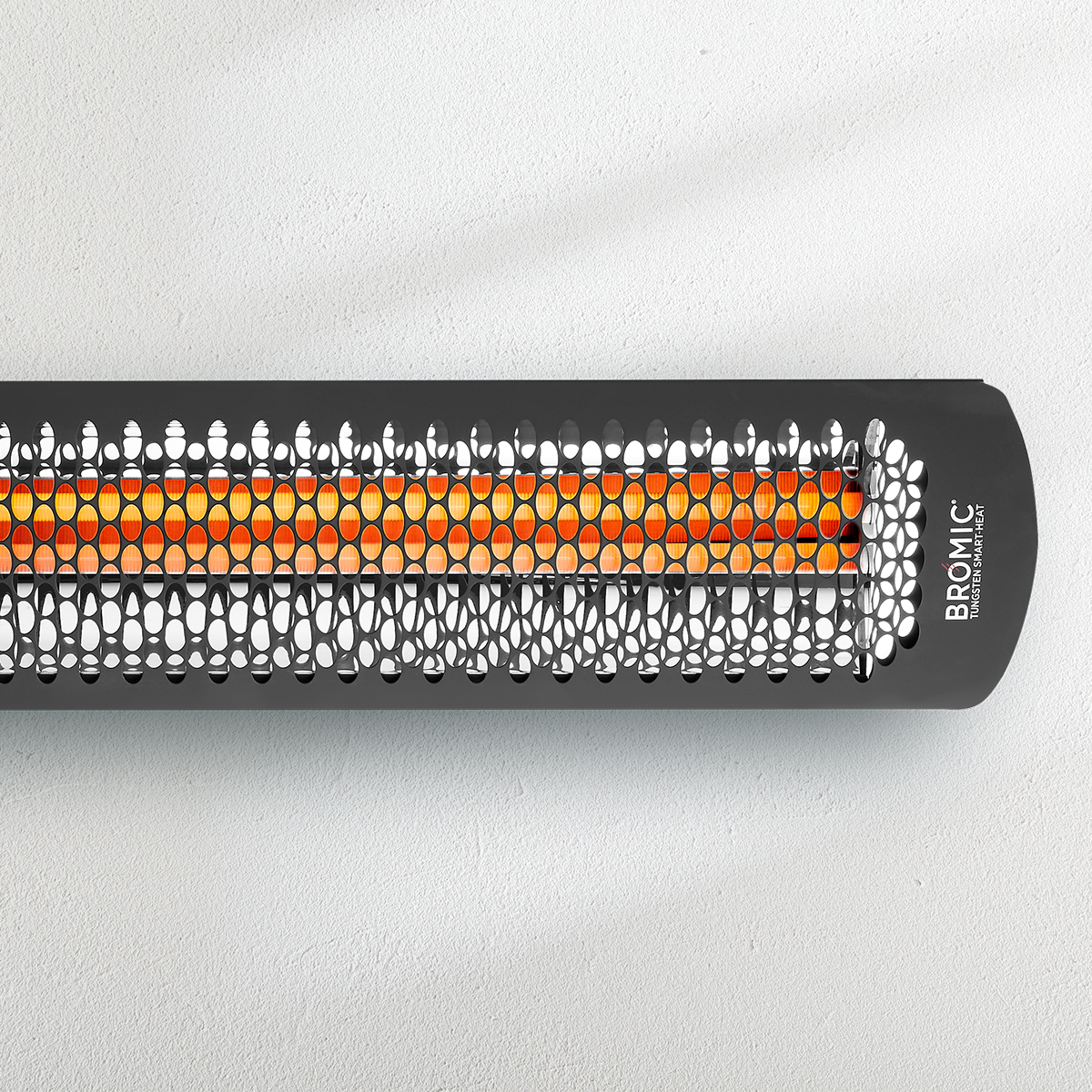

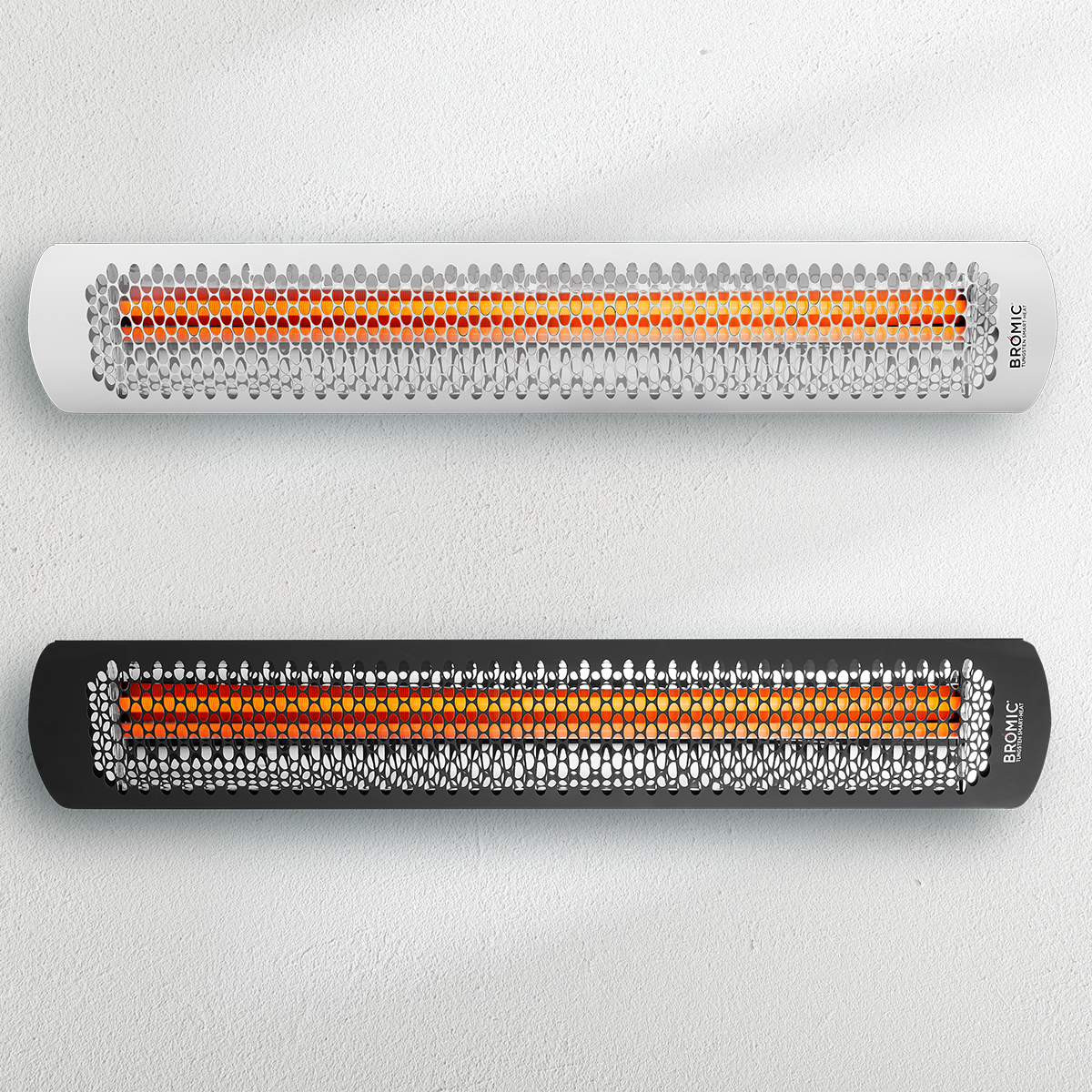

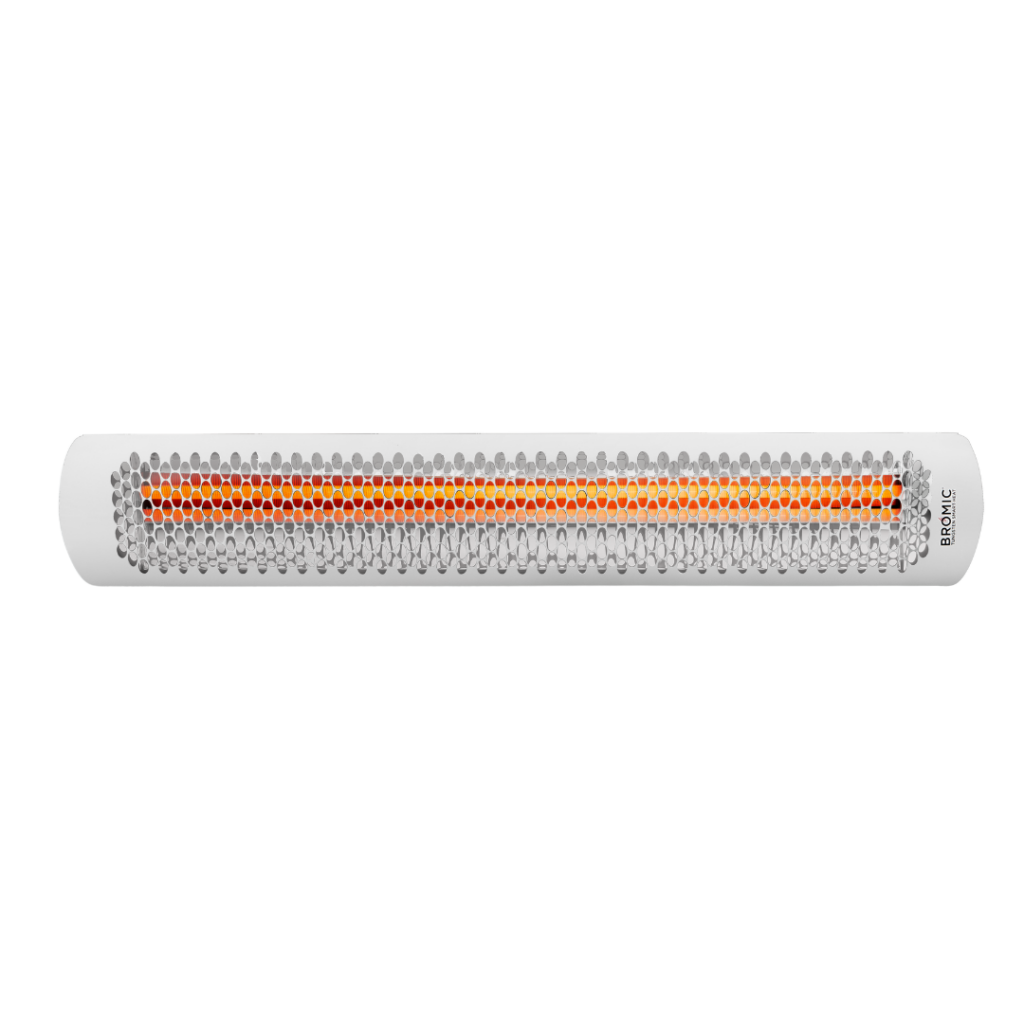

    Matte Finish Stainless-Steel construction for reliable heating performance and durability, with the choice of corrosion-resistant black or white finishes.

  • More
    Close
    Precise Directional Heating

    Accurately alter heat coverage as required with a simple bracket adjustment.

  • More
    Close

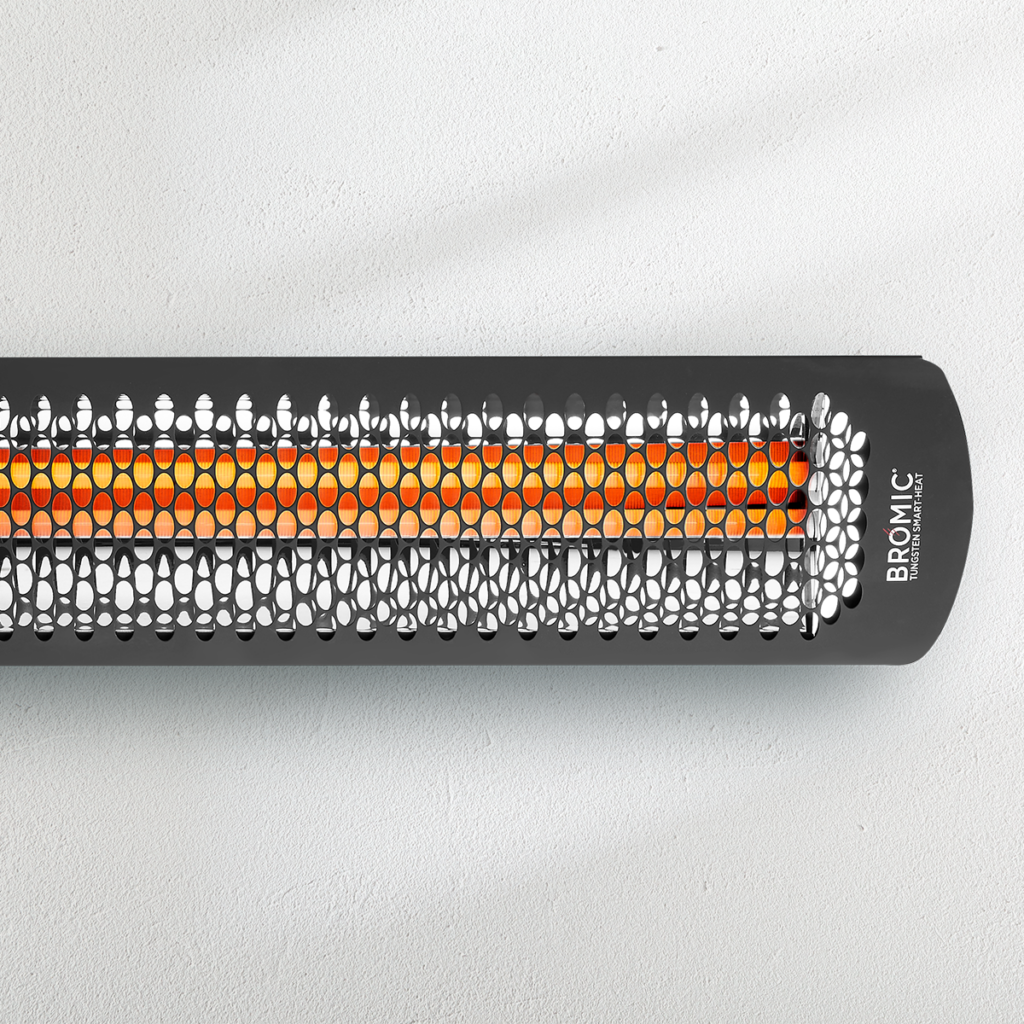

    Unique Design

    Honeycomb fascia facilitates precise heat distribution.

  • More
    Close
    Patented Performance

    Superior wind resistance.

  • More
    Close
    High Qaulity Quartz Element

    A thick steel coil housed in translucent fused quartz is durable and offers high-output heat.

  • More
    Close
    Parabolic Specular Reflector (PSR)

    Maximizes performance and efficiency by directing potentially lost infrared energy back towards the target via a mirror-finish anodized rear reflector.

Product Resources

Discover everything you need to know about the Tungsten Electric heater series, from heat blooms and mounting options to detailed specifications and FAQs.

Specifications

Please reference the specification guide below to help you select the correct solution for your needs.

MODEL NUMBER 2000 SERIES 3000 SERIES 4000 SERIES 6000 SERIES
FUEL TYPE ELECTRIC ELECTRIC ELECTRIC ELECTRIC
COLOR BLACK | WHITE BLACK | WHITE BLACK | WHITE BLACK | WHITE
WEIGHT 20lbs 22lbs 20lbs 22lbs
MODEL #
  • BH0420030
    (220V-240V BLACK)
  • BH0420031
    (220V-240V BLACK)
    • BH0420032
      (220V-240V BLACK)
    • BH0420042
      (277V BLACK)
    • BH0420034
      (208V BLACK)
    • BH0420012
      (220V-240V WHITE)
    • BH0420044
      (277V WHITE)
  • BH0420037
    (208V WHITE)
    • BH0420033
      (220V-240V BLACK)
    • BH0420043
      (277V BLACK)
    • BH0420035
      (208V BLACK)
    • BH0420013
      (220V-240V WHITE)
    • BH0420045
      (277V WHITE)
  • BH0420036
    (208V WHITE)
HEAT AREA 65ft2 100ft2 130ft2 160ft2
RATED CURRENT ** 240V/8.3A
208V/9.62A
277V/7.22A
240V/12.5A
208V/14.42A
277V/10.83A
240V/16.6A
208V/19.23A
277V/14.44A
240V/25A
208V/28.85A
277V/21.66A
MINIMUM FLOOR CLEARANCE WALL 72”
CEILING 96”
WALL 72”
CEILING 96”
WALL 72”
CEILING 96”
WALL 72”
CEILING 96”
APPROVAL CERTIFICATION Intertek ETL / cETL 4005951

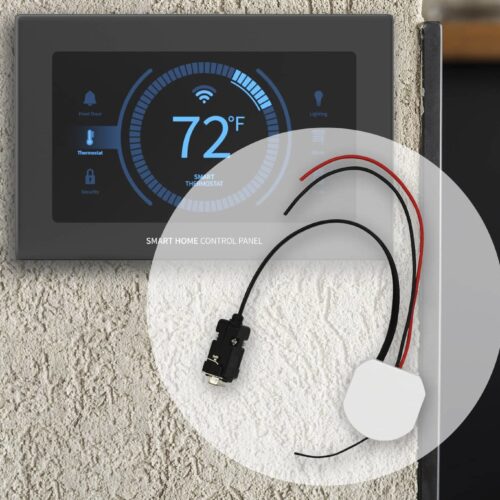

CONTROL OPTIONS
ON | OFF
DIMMER REMOTE
MASTER REMOTE *

* Independently control up to six zones of heaters with unlimited heaters per zone from a single control. Please note a dimmer controller is required. Control operates within 100ft of heaters.
** Available in varying voltages: 240V, 208V and 277V

Downloads

Dimensions

Heat Blooms

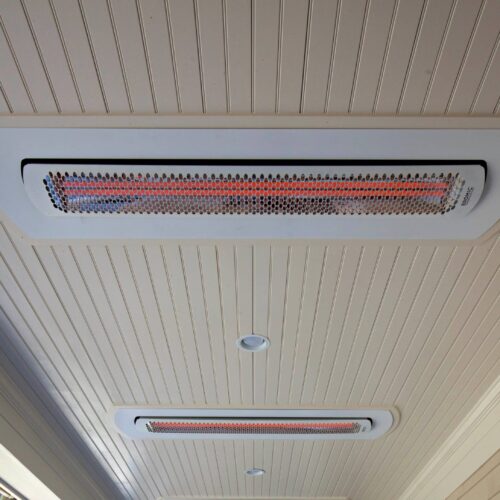

Mounting Options

Clearances

Installation

Installation must be carried out by a licensed and authorized technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.

Downloads

BIM & CAD Files

To download BIM & CAD files, fill out the form below:

FAQs

How is the heater controlled?

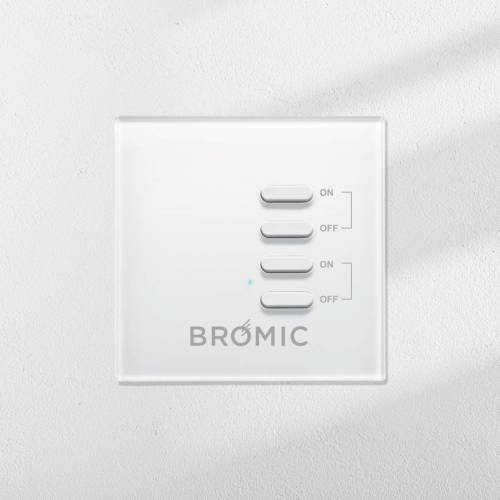

The heater can be either hard-wired or controlled with our Bromic Smart-Heat On/Off or Dimmer controls.

What clearance do we need from adjacent ceiling fans?

The heaters require a 3′ minimum side clearance from combustibles.

Does the heater come with ceiling brackets?

Yes. It comes with two brackets that can be used to secure the heater to either a wall or ceiling. We also offer a ceiling recesses kit for a more flush-mounted aesthetic.

Are the heaters adjustable in temperature and output?

The 4000 and 6000W versions of the Tungsten Electric come with two heating elements, which can be controlled separately to adjust the heat output as required.

Are the heaters waterproof?

The Tungsten Electric series has a IPX4 water ingress protection rating. Although our heaters are made from premium materials and engineered for longevity, we recommend that they are best mounted under cover and not directly exposed to rain, snow and salt mist to ensure they maintain their aesthetic appeal.

How do I know if I need the 208V or 220-240V electric heater version?

In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level. It’s primarily reserved for use in residential buildings and comes from a single phase system. A 240V service is accomplished by using two “hot” 120V standard lines. Most large electric appliances likes cook stoves, hot water heaters, and some other home appliances require this voltage. 208V, on the other hand, is from a 3 phase system and primarily found in commercial applications.

How many heaters do I need?

Whether you are looking for residential or commercial outdoor electric radiant heaters, the answer remains the same. The number of units needed depends entirely on the size and layout of the space, as well as the size and wattage of the heaters you are installing.

Infrared vs. radiant heaters: what’s the difference?

The truth is Infrared heaters and radiant heaters are in fact the same. The term “radiant heater” specifies that the heater is generating heat using radiation while the term “infrared heater” indicates the primary type of radiation being used by the heater to transmit that heat. All infrared radiant heaters are radiant heaters, as they provide warmth through heating objects, not the air. Learn more about infrared radiant heaters in our blog.

How efficient are electric radiant heaters?

How energy efficient electric radiant heaters are depends primarily on the type of technology being used and the application layout. The most efficient electric heater will use technologies such as directional infrared heating meaning that the energy consumption is maximized to ensure heat both reaches and is absorbed by users. Additionally, proper layouts entail thoughtful placement for necessary heat coverage only where it’s needed so as not to waste additional energy on unused spaces. Read our Guide on Sustainable Design Principles to ensure the most efficient use of heaters in your outdoor space.

Can you leave an outdoor radiant heater on all night?

Bromic’s outdoor heaters are designed for intermittent use and are not typically meant to be left on continuously throughout the night. For safety and energy-efficiency reasons, we recommend turning off the heaters when not in use and using them as needed to maintain a comfortable outdoor environment. If you require extended heating, consider using a timer or one of Bromic’s other various control options to regulate the heater’s operation based on your specific heating requirements.

How durable are Tungsten Heaters?

Tungsten outdoor heaters are renowned for their durability and robust construction. They are built to withstand the rigors of outdoor use, including exposure to varying weather conditions and are engineered to provide long-lasting performance. Regular maintenance and proper care, such as cleaning and covering when not in use, can further extend their lifespan.

Are Bromic Tungsten Heaters good?

The Tungsten outdoor heater collection is available in electric, gas, and portable options, and is known for its high-powered industrial design style, making them the preferred choice for both residences and businesses alike.

Do Tungsten Heaters need ventilation?

The Tungsten Electric heater series are electric heaters, which do not require ventilation as there are no harmful biproducts such as gasses released into the air. Bromic’s Tungsten Gas and Tungsten Portable heaters do require ventilation as potentially harmful biproducts are released in the air. Please refer to the corresponding Installation Manual to ensure proper clearances are met for safe operation.

What Our Clients Say

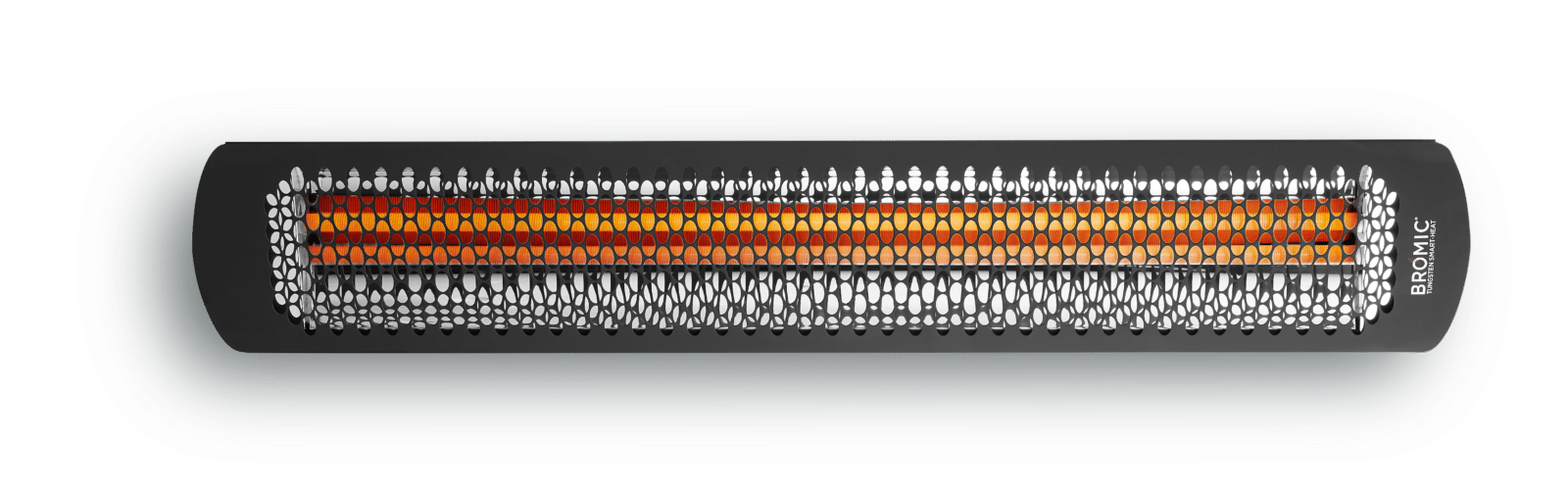

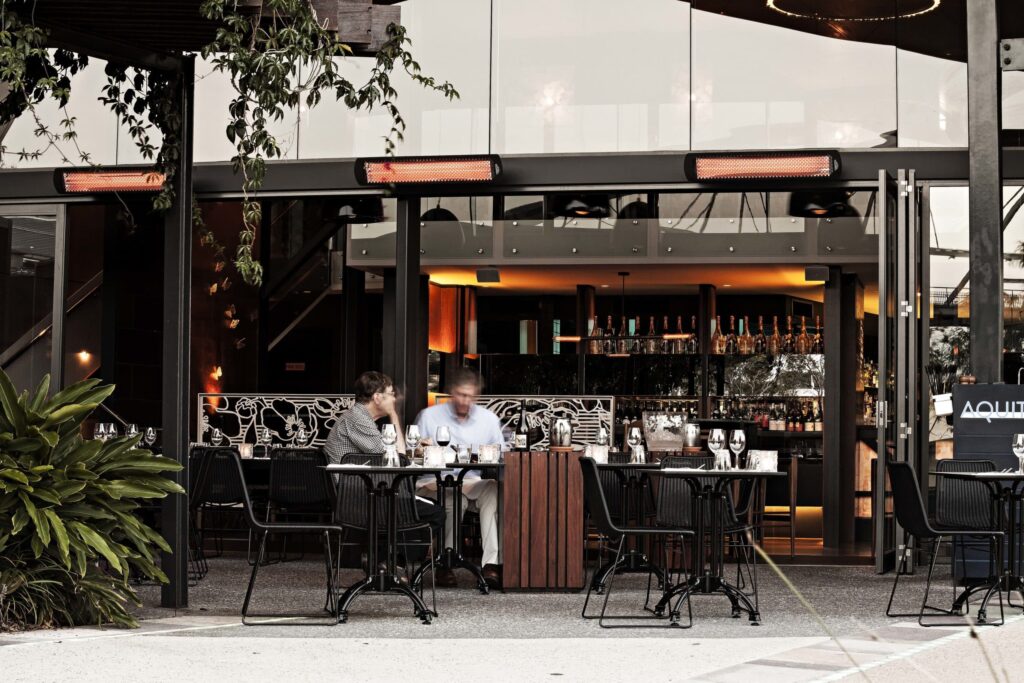

Electric Porch Heater - Tungsten Electric Wall Mounted in Black
★ ★ ★ ★ ★

The Tungsten Smart-Heat™ Electric range really offered the best-looking outdoor heaters out there, and the black finish fitted perfectly with our design aesthetic.

Nick Pinn Director - Aquitane Brasserie Brisbane
★ ★ ★ ★ ★

We have had this installed for 3 months now and believe it is an excellent value. We had the unit professionally installed and it has worked flawlessly, every time, and we have used it dozens of times. The heat is gentle and persistent and maintenance free (so far). Excellent value for the money.

Dexter Homeowner - Seattle

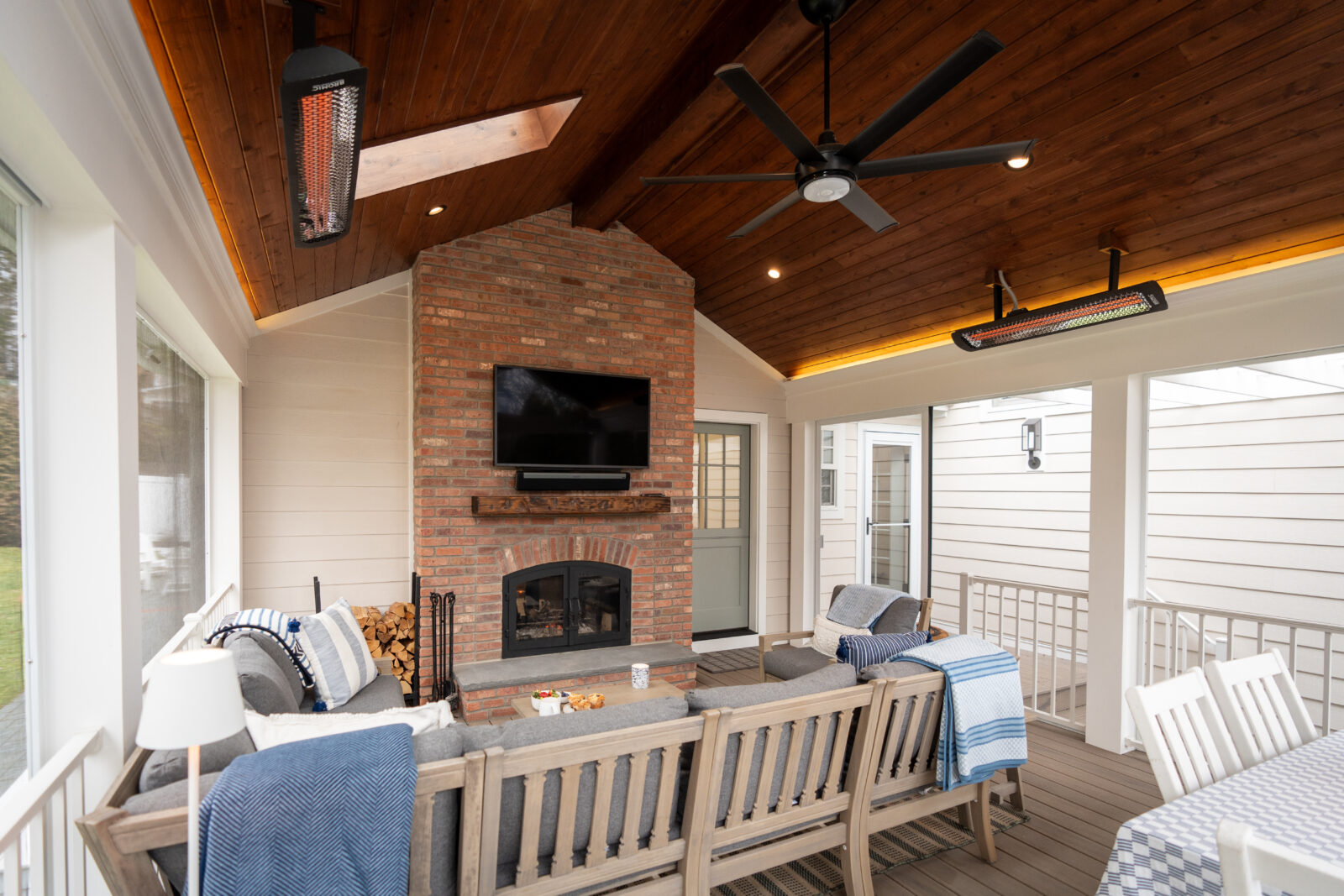

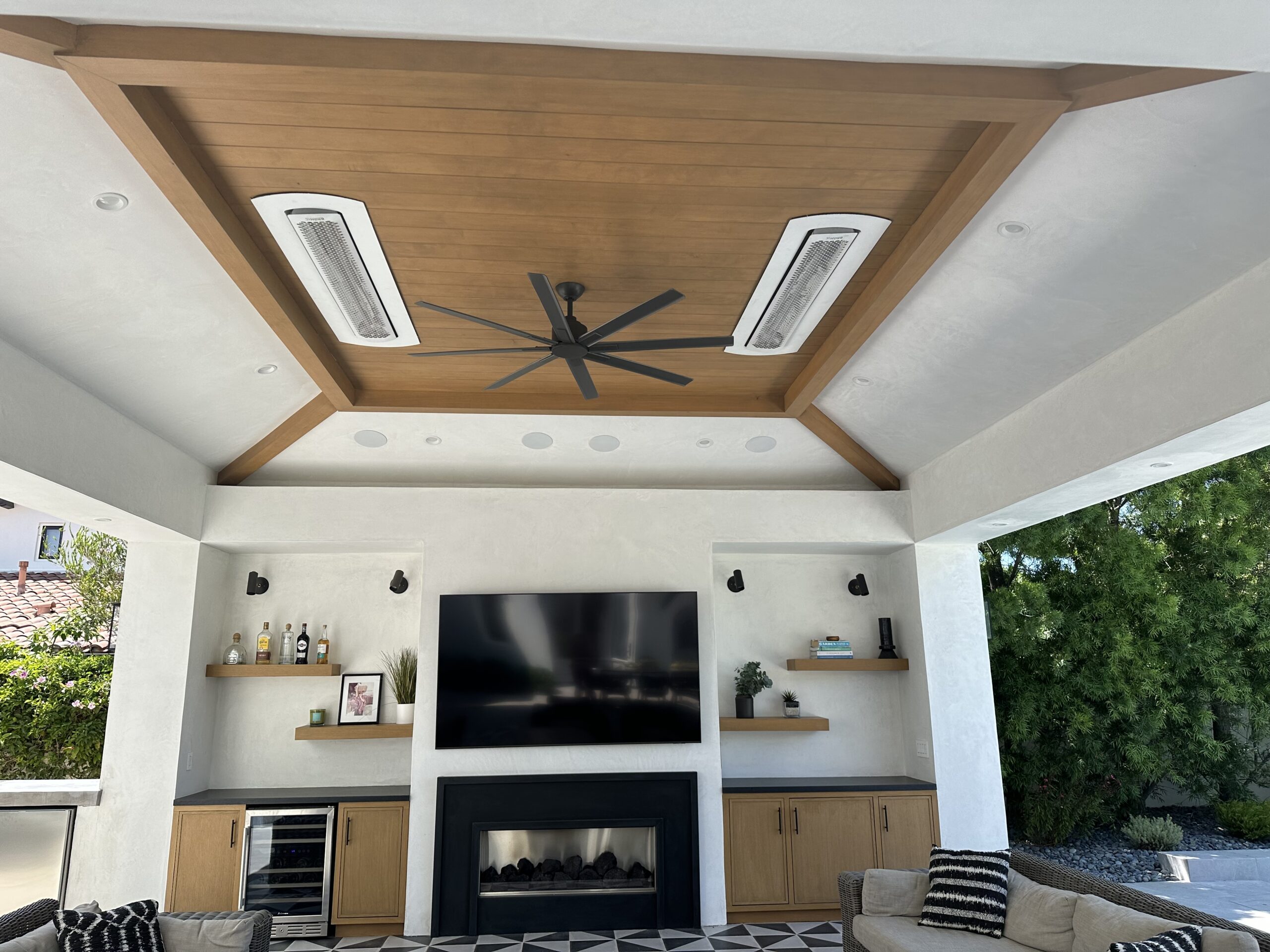

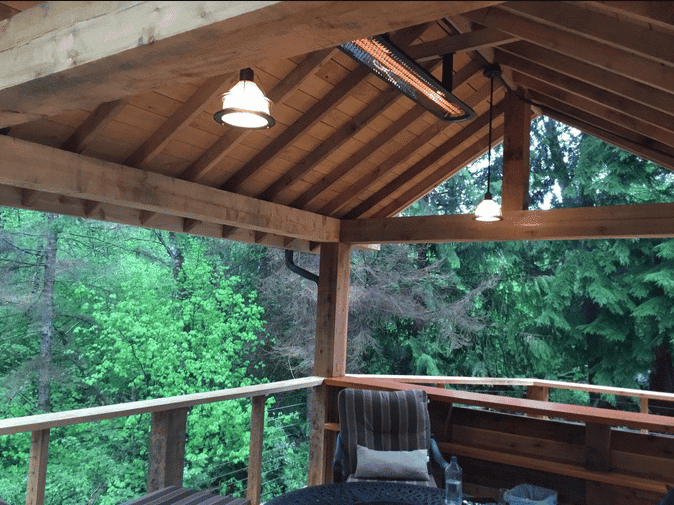

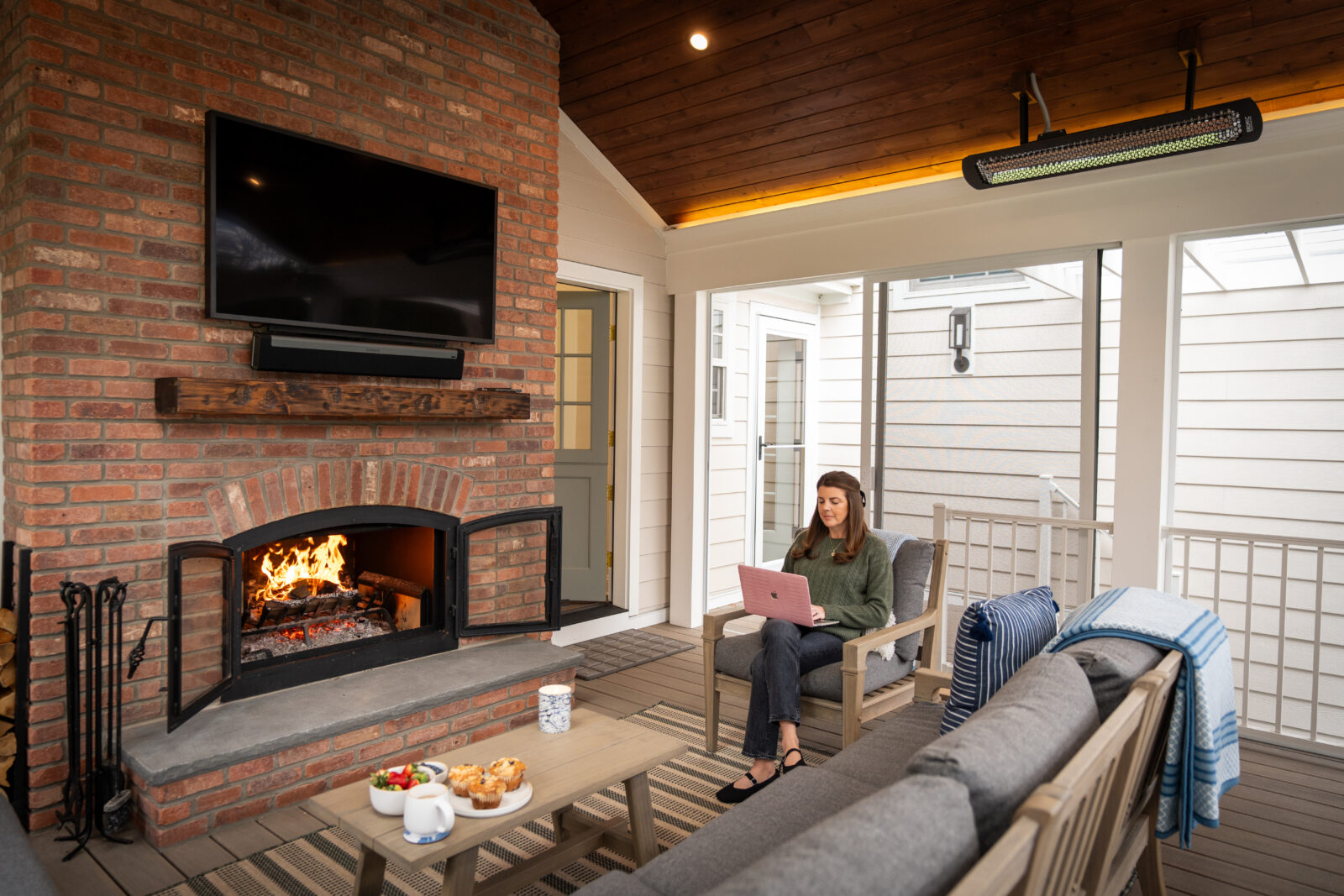

Ceiling mounted electric heater residential outdoor patio
